dpdk转发面trace

发表于 更新于 分类于 本文字数： 26k 阅读时长 ≈ 24 分钟

一种报文 trace 写法

上一期分析了 ebpf 转发面通过 linux perf event 的思路进行 trace，这一期介绍一种 dpdk 程序的 trace 方法。基本原理大致相通，也是通过共享内存的方式进行数据传输。转发面代码和工具代码通过 mmap 共享一段内存，转发面产生数据，工具代码消费数据。

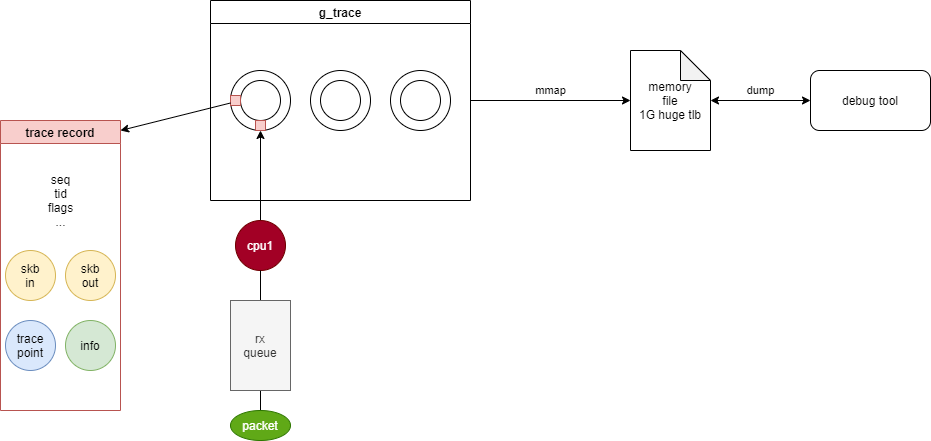

ptrace原理

共享内存 buffer

由于大部分 dpdk 程序是 run to completion 模型，一个 lcore 对应一个网卡队列，报文尽可能不要在 cpu 之间来回切换，而是由单个 cpu 处理完所有逻辑之后发送。因此，相对应的，我们的 buffer 要为每一个 cpu 都分配一个 ring

1
2
3
4
5
6
7
8
9
extern struct trace_buffer *g_trace;

typedef OBJ_RING(struct trace_record, 1 << 11) __rte_cache_aligned trace_ring_t;

struct trace_buffer {
    trace_ring_t percpu[16];
    int enabled;
    uint8_t ports[MAX_PORT][NR_TRACE_ON];
};

ring buffer

常规做法是使用 dpdk lib 的 rte_ring，但是该 ring 的实现比较复杂，且很多功能我们不会用到。因此下面介绍一个简易的 ring 实现，相比 dpdk rte_ring，内存占用较少，逻辑简单。

核心思路

  • 使用内存屏障rte_smp_wmb()/rte_smp_rmb()替代锁，保证线程安全
  • 使用 prepare，commit 两段式提交，确保数据一致性
  • 使用 mask 位运算代替取模获取索引，提升查找效率

具体实现代码如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
#define OBJ_RING(obj_type, ring_size) \
	struct { \
		uint64_t next_seq; \
		obj_type buffer[IS_POWER_OF_2(ring_size) ? \
		    (int)((ring_size) + MEMBER_TYPE_ASSERT(obj_type, seq, uint64_t)) : -1]; \
	}

#define obj_ring_type(ring)             typeof((ring)->buffer[0])
#define obj_ring_mask(ring)             (ARRAY_SIZE((ring)->buffer) - 1)
#define obj_ring_at(ring, seq)  (&(ring)->buffer[(seq) & obj_ring_mask(ring)])

#define obj_ring_init(ring) do { \
		obj_ring_type(ring) *_obj; \
		(ring)->next_seq = 0; \
		array_for_each(_obj, (ring)->buffer) \
		_obj->seq = 0; \
} while (0)

#define obj_ring_write_prepare(ring) ({ \
		obj_ring_type(ring) *_obj = obj_ring_at((ring), (ring)->next_seq); \
		_obj->seq = (ring)->next_seq; \
		rte_smp_wmb(); \
		_obj; \
	})

#define obj_ring_write_commit(ring) do { \
		rte_smp_wmb(); \
		(ring)->next_seq++; \
} while (0)

#define obj_ring_next_seq(ring) ACCESS_ONCE((ring)->next_seq)

#define obj_ring_read(ring, nseq, res) ({ \
		uint64_t _seq = (nseq); \
		obj_ring_type(ring) *_res = NULL; \
		if (_seq < obj_ring_next_seq(ring)) { \
			obj_ring_type(ring) *_obj = obj_ring_at((ring), _seq); \
			_res = (res); \
			do { \
				_seq = ACCESS_ONCE(_obj->seq); \
				while (_seq >= obj_ring_next_seq(ring)) {} \
				rte_smp_rmb(); \
				*_res = ACCESS_ONCE(*_obj); \
				rte_smp_rmb(); \
				_res->seq = ACCESS_ONCE(_obj->seq); \
			} while (_seq != _res->seq); \
		} \
		_res; \
	})

使用方式

1
2
3
4
5
6
7
8
9
10
11
12
//prepare
obj_ring_write_prepare(ring);
    _obj = obj_ring_at(ring, next_seq); // 获取写入位置
    _obj->seq = next_seq;              // 设置有效标记
    rte_smp_wmb();                     // 写内存屏障保证可见性

// 构造record

//commit
obj_ring_write_commit(ring);
    rte_smp_wmb();      // 确保数据完全写入后执行
    next_seq++;         // 递增序列号提交写入

data in memory file

转发面的表项 mmap 到文件，之后用工具读取文件并解析，是 dpdk 转发面开发中很常见的场景，比如路由表，邻居表的 dump。

相较于用 unix socket 传输，直接读取内存文件不会有速率的限制，且实现起来比较简单。

另一个优点是表项文件可以保留在主机上，当进程发生异常重启时，初始化阶段可以通过内存文件 restore 所有表项。

但是 trade off 是要处理好并发读写的问题。

我们可以定义一种通用的 header 带在数据前面方便我们解析

  • magic：魔术字，进行解析之前校验该特征
  • version: 版本，预留
  • data_size: data[]部分的长度
  • file_size：包含 header 的整个内存文件的大小，按 page size 取整
  • type: 定义文件时只读还是可写
1
2
3
4
5
6
7
8
9
10
11
12
13
14
struct dmf_header {
	uint32_t magic;
	uint32_t version;
	uint64_t data_size;
	uint64_t file_size;     /* PAGE_SIZE aligned */
	u8       initialized;   /* flag to indicate whether the file is initialized */
	char name[DMF_SPC_HDR_NAME_LEN];
	u8       type;
	char reserved[18];

	char data[];
};


创建 dmf 映射时，我们可以定义一种通用的 spec

1
2
3
4
5
6
7
8
9
10
11
12
13
struct dmf_spec {
	struct pal_hlist_node   hnode;
	obj_id_t                   id;

	char name[DMF_SPC_HDR_NAME_LEN];
	uint32_t version;
	uint32_t page_shift;  /* 内存页大小 */
	int reset_level;

	uint64_t addr;    /* 用户态代码中的虚拟内存地址 */
	size_t   head_padding;
	size_t   data_size;
};

使用时指定好 spec 就可以进行内存文件映射

1
2
3
4
5
6
7
8
static struct dmf_spec dmf_specs[] = {
	{{NULL, NULL}, OBJ_ID_NULL, "fp/trace",         0x20200320, DMF_PAGE_SHIFT, DMF_RL_DEL, 0x6670ull << 32, 0,   sizeof(*g_trace)},
};

void mvs_dp_dmf_map_all(int readonly)
{
	g_trace      = dmf_map("fp/trace", 0);
}

dmf_map 流程

  1. 寻找文件路径，若文件存在，mmap 整个文件到 spec->addr
  2. 若文件不存在，创建文件再 mmap
  3. 检查 header 的格式，若不合法，reset data
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
void *dmf_map_by_spec(struct dmf_spec *spec, const char *name, int readonly)
{
	char path[PATH_MAX];
	void *data = NULL;

	dmf_file_path(spec, path, sizeof(path));
	if (access(path, W_OK | R_OK) < 0) {
		if (readonly) {
			PAL_ERROR("dmf: file not exist: %s\n", name);
			goto out;
		}

		if (dmf_create(name) < 0) {
			goto out;
		}
	}

	data = dmf_map_file(path, spec, readonly);

out:
	return data;
}

int dmf_create(const char *name)
{
	struct dmf_spec *spec;

	spec = dmf_spec_find(name);
	if (!spec) {
		PAL_ERROR("dmf: no spec found for %s\n", name);
		return -1;
	}

	return dmf_do_create(spec);
}

int dmf_do_create(struct dmf_spec *spec)
{
	struct dmf_header hdr;
	size_t data_size;
	size_t file_size;
	size_t page_size;
	char path[PATH_MAX];
	int ret = 0;

	data_size = spec->data_size;
	page_size = 1ull << spec->page_shift;
	file_size = ROUND_UP_TO_PAGE_SIZE(sizeof(struct dmf_header) + data_size +
					  spec->head_padding, spec->page_shift);

	PAL_DEBUG("spec data_size 0x%x, file_size = 0x%x", data_size, file_size);

	dmf_file_path(spec, path, sizeof(path));
	if (dmf_mkdir_p(path) < 0) {
        return -1;
	}

	dmf_hdr_reset_hard(&hdr, spec, file_size, DMF_FILE_TYPE_FIXD_STATIC);
	if (DMF_IS_1G_HUGEPAGE(spec) || DMF_IS_2M_HUGEPAGE(spec)) {
		ret = dmf_create_hugetlbfs(&hdr, path, file_size, spec->head_padding);
	} else {
		ret = dmf_create_tmpfs(&hdr, path, file_size, page_size, spec->head_padding);
	}
	if (ret < 0) {
		return ret;
	}

	PAL_LOG("dmf: created file %s, file_size=%zd, page_size=%zd\n",
		path, file_size, page_size);
	return 0;
}

static int dmf_create_tmpfs(struct dmf_header *hdr, const char *path,
		 size_t file_size, size_t page_size,
		 size_t head_padding)
{
	char *data = NULL;
	int fd = -1;

	ASSERT(head_padding <= (page_size - sizeof(*hdr)));
	data = malloc(page_size);
	if (!data) {
		goto err;
	}
	memset(data, 0, page_size);

	fd = open(path, O_WRONLY | O_TRUNC | O_CREAT, 0644);
	if (fd < 0) {
		goto err;
	}

	while (file_size) {
		size_t bytes = dmf_min(page_size, file_size);
		if ((size_t)write(fd, data, bytes) != bytes) {
			goto err;
		}

		file_size -= bytes;
	}

	if (lseek(fd, head_padding, SEEK_SET) == -1) {
		goto err;
	}

	if ((size_t)write(fd, hdr, sizeof(*hdr)) != sizeof(*hdr)) {
		goto err;
	}

	close(fd);
	free(data);

	return 0;

err:
	PAL_ERROR("dmf: failed to create file: %s: %s\n",
		  path, strerror(errno));

	if (fd >= 0) {
		close(fd);
	}
	if (data) {
		free(data);
	}

	return -1;
}

static int dmf_create_hugetlbfs(struct dmf_header *hdr, const char *path,
		     size_t file_size, size_t head_padding)
{
	void *addr;
	int fd;

	ASSERT(head_padding < (file_size - sizeof(*hdr)));

	fd = open(path, O_CREAT | O_RDWR, 0600);
	if (fd < 0) {
		return -1;
	}

	/* do ftruncate first to avoid mmap failed */
	ftruncate(fd, file_size);

	addr = mmap(NULL, file_size, PROT_READ | PROT_WRITE,
		    MAP_SHARED | MAP_POPULATE, fd, 0);
	close(fd);

	if (addr == MAP_FAILED) {
		PAL_ERROR("dmf: failed to create file: %s: %s\n",
			  path, strerror(errno));
		return -1;
	}

	memcpy((char *)addr + head_padding, hdr, sizeof(*hdr));
	munmap(addr, file_size);
	return 0;
}

void * dmf_map_file(char *path, struct dmf_spec *spec, int readonly)
{
	size_t file_size;
	struct dmf_header *hdr;

	BUILD_BUG_ON(sizeof(*hdr) != 128);
	hdr = dmf_do_map(path, spec, &file_size, readonly);
	if (!hdr) {
		PAL_ERROR("dmf: failed to map %s: %s\n", spec->name, strerror(errno));
		goto err;
	}

	if (file_size < spec->data_size) {
		PAL_ERROR("dmf: file_size %zd < data_size %zd\n",
			  file_size, spec->data_size);
		goto err;
	}

	if (dmf_need_reset(hdr, spec)) {
		if (readonly) {
			goto err;
		}

		hdr->data_size = spec->data_size;
		hdr->file_size = file_size;
		hdr->version   = spec->version;
	}

	return hdr->data;
err:
	return NULL;
}

static inline void * dmf_do_map(const char *path, struct dmf_spec *spec,
	   size_t *file_size, int readonly)
{
	uint8_t *ptr;
	struct stat st;
	int fd = -1;

	fd = open(path, O_RDWR, 0644);
	if (fd < 0) {
		PAL_ERROR("dmf: failed to open file %s: %s\n", path, strerror(errno));
		goto err;
	}

	if (fstat(fd, &st) != 0) {
		PAL_ERROR("dmf: fstat failed: %s: %s\n", path, strerror(errno));
		goto err;
	}

	/* map the whole file, even we may use part of them; ct is one example. */
	ptr = mmap((void *)(uintptr_t)spec->addr, st.st_size,
		   readonly ? PROT_READ : PROT_READ | PROT_WRITE,
		   MAP_SHARED | MAP_POPULATE, fd, 0);
	if (ptr == MAP_FAILED) {
		PAL_ERROR("dmf: failed to map file %s: %s\n", path, strerror(errno));
		goto err;
	}

	if (spec->addr && (uintptr_t)ptr != spec->addr) {
		PAL_ERROR("dmf: requested map addr 0x%lx, but mapped at 0x%lx\n",
			  spec->addr, (intptr_t)ptr);
		goto err;
	} else {
		spec->addr = (uintptr_t)ptr;
	}

	*file_size = st.st_size;

	close(fd);

	return ptr + spec->head_padding;

err:
	if (fd >= 0) {
		close(fd);
	}
	return NULL;
}

static inline int dmf_need_reset(struct dmf_header *hdr, struct dmf_spec *spec)
{
	const char *name = spec->name;

	if (hdr->magic != DMF_MAGIC) {
		PAL_WARNING("dmf: %s: magic mismatch: hdr magic 0x%08x != 0x%08x\n",
			    name, hdr->magic, DMF_MAGIC);
		return 1;
	}

	if (hdr->data_size != spec->data_size) {
		PAL_WARNING("dmf: %s: data_size mismatch: hdr data_size %zd != %zd\n",
			    name, hdr->data_size, spec->data_size);
		return 1;
	}

	/* '\0' is included */
	if (memcmp(hdr->name, name, dmf_min(strlen(name) + 1, sizeof(hdr->name))) != 0) {
		PAL_WARNING("dmf: %s: name mismatch: hdr name %s\n",
			    name, hdr->name);
		return 1;
	}

	if (hdr->version != spec->version) {
		PAL_WARNING("dmf: %s version mismatch: hdr version 0x%08x != 0x%08x\n",
			    name, hdr->version, spec->version);
		return 1;
	}

	return 0;
}

trace record

一条 trace_record 需要记录了一条流的完整信， 包括 rx 和 tx 时的 skb 信息，cpu id，经过的所有 trace points 以及必要的 info

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
/* trace的skb只记录必要的header信息*/
struct trace_skb {
    char data[192];
    uint32_t pkt_len: 31;
    uint32_t has_eth_hdr: 1;
    uint16_t recv_if;
    uint16_t send_if;
    uint32_t vpcid;
    uint16_t segsz;
    uint16_t l2_len;
    uint16_t l3_len;
    uint16_t l4_len;
    uint64_t mbuf_oflag;
};

struct trace_skbinfo {
    uint16_t  init: 1,
         tcp_state: 4,
         reserved: 11;
    uint16_t action_cnt[DIR_COUNT]; // ct最终执行的action个数
    ct_tuple_t tuple[DIR_COUNT];  // ct五元组信息
    uint32_t vmip;
    obj_id_t ct_id; // conntrack id
};

struct trace_point {
    short ctx;  // 观测点
    short err;  // 错误码
    uint32_t tsc; // 时间戳
};

struct trace_record {
    uint64_t seq;
    uint64_t rx_tsc;
    uint32_t flags;
    uint16_t tid;
    uint16_t nr_point;
    struct trace_point points[32];
    struct trace_skb skbs[2];  // rx和tx时的skb
    struct trace_skbinfo skbinfo; // 扩展信息
};

trace 语法

下面是一个典型使用样例

1
2
3
4
5
6
7
8
9
10
11
12
13
packet rx
TRACE_BEGIN()
    do logic
        ...
TRACE_POINT()
   do logic
        ...
TRACE_ERROR()
   do logic
        ...
TRACE_SEND()
TRACE_END()
packet tx

  • trace_begin

    • 初始化 trace_record
    • 拷贝 ingress 时的 skb
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    static inline struct trace_record *
    trace_begin(struct sk_buff *skb, int ctx,
            int has_eth_hdr)
    {
        struct trace_record *record;
        trace_ring_t *ring;
        trace_filter_t trace_filter = g_trace_filter;
        int tid;

        if (unlikely(trace_filter && trace_filter(skb, ctx, has_eth_hdr) != 0)) {
            return NULL;
        }

        tid = pal_thread_id();

        ring = get_trace_ring(tid);
        if (unlikely(ring == NULL)) {
            return NULL;
        }

        record = obj_ring_write_prepare(ring);
        record->rx_tsc = pal_thread_conf(tid)->start_cycle;
        record->flags = 0;
        record->tid = tid;
        record->nr_point = 0;
        record->skbinfo.tcp_state = 0;
        record->skbinfo.ct_id = OBJ_ID_NULL;

        record->skbs[0].pkt_len = 0;
        record->skbs[1].pkt_len = 0;

        if (trace_enabled(skb->recv_if, TRACE_ON_POINTS)) {
            trace_add_point(record, ctx, 0);
        }

        if (trace_enabled(skb->recv_if, TRACE_ON_RX)) {
            trace_set_skb(record, skb, 0, has_eth_hdr);
            trace_set_skbinfo(&record->skbinfo, NULL);
        }

        skb->trace = record;

        return record;
    }

  • trace_point

    • 为 trace_record 的 points 增加一个观测点

      1
      2
      3
      4
      5
      6
      7
      static inline void
      trace_point(struct trace_record *record, int ctx, int err)
      {
          if (record->nr_point && record->nr_point < ARRAY_SIZE(record->points)) {
              trace_add_point(record, ctx, err);
          }
      }

  • trace_error

    • 为 trace_record 的 points 增加一个带错误码的观测点

  • trace_end

    • 增加 end 观测点

    • 将 record 写到 cpu 对应的 ring

      1
      2
      3
      4
      5
      6
      7
      8
      9
      10
      11
      12
      13
      14
      15
      16
      17
      18
      19
      20
      static inline void
      trace_end(struct trace_record *record, int err)
      {
          trace_ring_t *ring;

          if (!record) {
              return;
          }

          if (record->skbs[0].pkt_len == 0 && record->skbs[1].pkt_len == 0) {
              return;
          }

          trace_point(record, TRACE_POINT_end, err);

          ring = get_trace_ring(record->tid);
          if (ring) {
              obj_ring_write_commit(ring);
          }
      }

  • trace_send

    • 增加一个观测点
    • 拷贝 egress 时的 skb
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    static inline void
    trace_send(struct sk_buff *skb, int ctx)
    {
        struct trace_record *record = skb->trace;

        trace_point(record, ctx, 0);

        if (trace_enabled(skb->send_if, TRACE_ON_TX)) {
            trace_set_skb(record, skb, 1, 1);  // trace tx
        }
    }

trace_reader

reader 打开内存文件读取 record，每一个 ring 相应的需要创建对应的 cache。

由于 dump 打印到标准输出的速度较慢，大流量场景下，cache 可能会被打满，因此需要 read 和 lost 统计

按照 trace_option 对 trace_record 进行过滤

1
2
3
4
5
6
7
8
9
struct trace_reader {
	struct trace_cache percpu[ARRAY_SIZE(g_trace->percpu)];
	uint64_t start_time_usec;
	uint64_t start_time_tsc;
	size_t nr_read;
	size_t nr_lost;
	size_t nr_filtered;
	struct trace_option option;
};

record 解析流程

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507

static void *trace_skb_header(struct trace_skb *skb, uint16_t offset, uint16_t size)
{
	uint16_t data_len = RTE_MIN((size_t)skb->pkt_len, sizeof(skb->data));

	if (offset >= data_len || offset + size > data_len)
		return NULL;

	return skb->data + offset;
}

#define TRACE_SKB_HEADER(skb, offset, type) \
	((type *)trace_skb_header(skb, offset, sizeof(type)))


#define VALUE_IN_RANGE(v, min, max)	((v) >= (min) && (v) <= (max))

static int match_addr(struct addr_filter *af, u32 ip, u16 port)
{
	if (!VALUE_IN_RANGE(ip, af->ip_min, af->ip_max))
		return 0;
	if (!VALUE_IN_RANGE(port, af->port_min, af->port_max))
		return 0;
	return 1;
}

static int match_tuple(struct tuple_filter *tf, u32 sip, u32 dip, u16 sport, u16 dport)
{
	if (match_addr(&tf->src, sip, sport) && match_addr(&tf->dst, dip, dport))
		return 1;
	if (tf->nr_dir == 1)
		return 0;
	if (match_addr(&tf->dst, sip, sport) && match_addr(&tf->src, dip, dport))
		return 1;
	return 0;
}

static struct pal_ip_hdr *parse_trace_skb(struct trace_skb *skb, uint32_t *vpcid,
				struct pal_l4port_hdr **l4h, uint16_t *l3_proto)
{
	struct pal_ip_hdr *iph;
	struct pal_geneve_hdr *genh;
	uint16_t off = 0;

	*vpcid = skb->vpcid;

	if (skb->has_eth_hdr) {
		struct pal_eth_hdr *eth = TRACE_SKB_HEADER(skb, off, struct pal_eth_hdr);
		if (!eth)
			return NULL;
		*l3_proto = pal_ntohs(eth->type);
		off += sizeof(struct pal_eth_hdr);
	}

	iph = TRACE_SKB_HEADER(skb, off, struct pal_ip_hdr);
	if (!iph)
		return NULL;

	off += iph->ihl << 2;
	*l4h = TRACE_SKB_HEADER(skb, off, struct pal_l4port_hdr);
	if (iph->protocol == PAL_IPPROTO_UDP && !ip_is_fragment(iph) && (*l4h)->dest == pal_ntohs(GENEVE_PORT)) {
		off += 8;
		genh = TRACE_SKB_HEADER(skb, off, struct pal_geneve_hdr);
		*vpcid = ((uint32_t)genh->vni[0] << 16) | ((uint32_t)genh->vni[1] << 8) | (uint32_t)genh->vni[2];
		off += sizeof(*genh) + (genh->opt_len << 2);
		if (genh->proto == pal_ntohs(GENEVE_TYPE_ETH)) {
			struct pal_eth_hdr *eth = TRACE_SKB_HEADER(skb, off, struct pal_eth_hdr);
			if (!eth)
				return NULL;
			*l3_proto = pal_ntohs(eth->type);
			off += sizeof(struct pal_eth_hdr);
		} else if (genh->proto == pal_ntohs(GENEVE_TYPE_IPV4)){
			*l3_proto = pal_ntohs(genh->proto);
		}
		iph = TRACE_SKB_HEADER(skb, off, struct pal_ip_hdr);
		if (!iph)
			return NULL;
		off += iph->ihl << 2;
		*l4h = TRACE_SKB_HEADER(skb, off, struct pal_l4port_hdr);
	}

	return iph;
}

static void pop_outer_header(struct trace_skb *skb)
{
	struct pal_ip_hdr *outer_iph, *inner_iph;
	struct pal_geneve_hdr *genh;
	uint16_t off = 0;
	uint16_t move_len = 0;

	if (skb->has_eth_hdr) {
		struct pal_eth_hdr *eth = TRACE_SKB_HEADER(skb, off, struct pal_eth_hdr);
		if (!eth)
			return;
		off += sizeof(struct pal_eth_hdr);
	}

	outer_iph = TRACE_SKB_HEADER(skb, off, struct pal_ip_hdr);
	if (!outer_iph)
		return;

	off += outer_iph->ihl << 2;
	if (outer_iph->protocol != PAL_IPPROTO_UDP || ip_is_fragment(outer_iph))
		return;
	struct pal_udp_hdr *udph = TRACE_SKB_HEADER(skb, off, struct pal_udp_hdr);
	if (udph->dest != pal_ntohs(GENEVE_PORT))
		return;
	off += sizeof(*udph);
	genh = TRACE_SKB_HEADER(skb, off, struct pal_geneve_hdr);
	if (!genh)
		return;
	off += sizeof(*genh) + (genh->opt_len << 2);

	if (genh->proto == pal_ntohs(GENEVE_TYPE_ETH))
		off += sizeof(struct pal_eth_hdr);

	inner_iph = TRACE_SKB_HEADER(skb, off, struct pal_ip_hdr);
	if (!inner_iph)
		return;

	move_len = skb->data + skb->pkt_len - (char *)inner_iph;
	skb->pkt_len -= (char *)inner_iph - (char *)outer_iph;
	memmove(outer_iph, inner_iph, move_len);
}

static void mangle_skb(struct trace_option *opt, struct trace_record *r)
{
	struct trace_skb *rx_skb = &r->skbs[0];
	struct trace_skb *tx_skb = &r->skbs[1];

	if (opt->inner) {
		pop_outer_header(rx_skb);
		pop_outer_header(tx_skb);
	}
}

static int match_skb(struct trace_option *opt, struct trace_skb *skb)
{
	uint16_t l3_proto = 0;
	struct pal_ip_hdr *iph;
	struct pal_l4port_hdr *l4h = NULL;
	uint32_t vpcid = -1;

	if (!skb->pkt_len)
		return 0;

	iph = parse_trace_skb(skb, &vpcid, &l4h, &l3_proto);
	if (opt->arp) {
		return l3_proto == PAL_ETH_ARP;
	}

	if (opt->vpcid != -1u && opt->vpcid != vpcid)
		return 0;

	if (iph && ip_is_fragment(iph) && opt->ip_frag == 0)
		return 0;

	if (!opt->tuple.proto && !opt->tuple.nr_dir)
		return 1;

	if (iph) {
		if (opt->tuple.proto && opt->tuple.proto != iph->protocol)
			return 0;
		if (!opt->tuple.nr_dir)
			return 1;
		if (l4h && !ip_is_fragment(iph)) {
			return match_tuple(&opt->tuple,
							   ntohl(iph->saddr), ntohl(iph->daddr),
							   ntohs(l4h->source), ntohs(l4h->dest));
		} else {
			/* match l3 only */
			return match_tuple(&opt->tuple,
							ntohl(iph->saddr), ntohl(iph->daddr),
							opt->tuple.src.port_min, opt->tuple.dst.port_min);
		}
	}

	return 0;
}

static int match_record(struct trace_option *opt, struct trace_record *r)
{
	struct trace_skb *rx_skb = &r->skbs[0];
	struct trace_skb *tx_skb = &r->skbs[1];

	if (opt->pkt_err && r->nr_point &&
		r->points[r->nr_point-1].err != opt->pkt_err)
		return 0;

	if (!trace_option_has(opt, rx_skb->recv_if, TRACE_ON_RX) &&
		!trace_option_has(opt, tx_skb->send_if, TRACE_ON_TX))
		return 0;

	if (!match_skb(opt, rx_skb) &&
		!match_skb(opt, tx_skb))
		return 0;

	return 1;
}

static void trace_cache_init(struct trace_cache *c, trace_ring_t *ring)
{
	c->ring = ring;
	c->next_seq = obj_ring_next_seq(ring);
	c->nr_lost = 0;
	c->r = 0;
	c->w = 0;
}

static struct trace_record *trace_cache_at(struct trace_cache *c, size_t index)
{
	return &c->records[index & (ARRAY_SIZE(c->records) - 1)];
}

static int trace_cache_full(struct trace_cache *c)
{
	return c->w - c->r >= ARRAY_SIZE(c->records);
}

static int trace_cache_empty(struct trace_cache *c)
{
	return c->w == c->r;
}

static void  trace_cache_fill(struct trace_cache *c, struct trace_option *opt)
{
	struct trace_record *r;

	while (!trace_cache_full(c)) {
		r = trace_cache_at(c, c->w);
		if (!obj_ring_read(c->ring, c->next_seq, r))
			break;
		assert(r->seq >= c->next_seq);
		c->nr_lost += r->seq - c->next_seq;
		c->next_seq = r->seq + 1;
		if (match_record(opt, r)) {
			c->w++;
			mangle_skb(opt, r);
		} else
			c->nr_filtered++;
	}
}

void trace_option_sync(struct trace_option *opt)
{
	int port_id;
	int i;

	fp_memory_set_writable(g_trace, 1);

	for (port_id = 0; port_id < PAL_MAX_PORT; port_id++) {
		for (i = 0; i < NR_TRACE_ON; i++) {
			if (trace_option_has(opt, port_id, i))
				g_trace->ports[port_id][i] = 30;
		}
	}

	fp_memory_set_writable(g_trace, 0);
}

static void *trace_option_thread(void *arg)
{
	struct trace_option *opt = arg;

	while (1) {
		trace_option_sync(opt);
		sleep(20);
	}

	return NULL;
}

static void trace_option_init(struct trace_option *opt)
{
	const char *pkt_err;
	const char *vpcid;
	const char *proto;
	const char *addr;
	const char *inner;
	const char *ip_frag;
	const char *count;
	const char *file_r;
	const char *file_w;
	const char *arp;
	pthread_t pid;

	fp_memset(opt->ports_flags, 0);
	opt->pkt_err = 0;
	opt->vpcid = -1;
	opt->inner = 0;
	opt->ip_frag = 0;
	tuple_filter_init(&opt->tuple);
	opt->nr_read_max = -1u;
	opt->fp_r = NULL;
	opt->fp_w = NULL;

	pkt_err = getenv("dpdk_trace_error");
	if (pkt_err) {
		opt->pkt_err = error_code(pkt_err);
		if (!opt->pkt_err) {
			fprintf(stderr, "Invalid trace error: %s\n", pkt_err);
			exit(1);
		}
	}

	vpcid = getenv("dpdk_trace_vpcid");
	if (vpcid)
		opt->vpcid = strtoul(vpcid, NULL, 10);

	proto = getenv("dpdk_trace_proto");
	if (proto)
		opt->tuple.proto = strtoul(proto, NULL, 10);

	addr = getenv("dpdk_trace_addr");
	if (addr) {
		int err = tuple_filter_parse(&opt->tuple, &addr);
		if (err) {
			fprintf(stderr, "Invalid trace addr: %s, at '%s'\n",
				tuple_filter_error(err), addr);
			exit(1);
		}
		if (*addr) {
			fprintf(stderr, "Unexpected input for trace addr: '%s'\n", addr);
			exit(1);
		}
	}

	inner = getenv("dpdk_trace_inner");
	if (inner)
		opt->inner = !!strtoul(inner, NULL, 10);

	ip_frag = getenv("dpdk_trace_ip_frag");
	if (ip_frag)
		opt->ip_frag = !!strtoul(ip_frag, NULL, 10);

	count = getenv("dpdk_trace_count");
	if (count)
		opt->nr_read_max = strtoul(count, NULL, 10);

	file_r = getenv("dpdk_trace_read");
	if (file_r)
		opt->fp_r = fopen(file_r, "rb");

	file_w = getenv("dpdk_trace_write");
	if (file_w)
		opt->fp_w = fopen(file_w, "wb");

	//trace arp only
	arp = getenv("dpdk_trace_arp");
	if (arp)
		opt->arp = strtoul(arp, NULL, 10);

	if (pthread_create(&pid, NULL, trace_option_thread, opt) != 0) {
		fprintf(stderr, "<%s> pthread_create error: %s\n", __func__, strerror(errno));
		exit(1);
	}
}

static uint64_t current_time_usec(void)
{
	struct timeval tv;
	gettimeofday(&tv, NULL);
	return tv.tv_sec * 1000000 + tv.tv_usec;
}

void trace_reader_strftime(struct trace_reader *reader, uint64_t tsc, struct time_buf *buf)
{
	uint64_t usec = trace_reader_get_usec(reader, tsc);
	time_t sec = usec / 1000000;
	struct tm tm;

	localtime_r(&sec, &tm);

	buf->len = strftime(buf->data, sizeof(buf->data), "%Y-%m-%d %H:%M:%S", &tm);
	SPRINTF(*buf, ".%06d", (int)(usec % 1000000));
}

void trace_reader_init(struct trace_reader *reader)
{
	struct trace_cache *c;

	array_for_each(c, reader->percpu) {
		trace_cache_init(c, &g_trace->percpu[c - reader->percpu]);
	}

	reader->start_time_usec = current_time_usec();
	reader->start_time_tsc = rte_rdtsc();
	reader->nr_read = 0;
	reader->nr_lost = 0;
	reader->nr_filtered = 0;

	trace_option_init(&reader->option);

	if (reader->option.fp_r) {
		if (fread(&reader->start_time_usec, sizeof(uint64_t), 2, reader->option.fp_r) != 2) {
			fprintf(stderr, "failed to read binary records: %s\n", strerror(errno));
			fclose(reader->option.fp_r);
			reader->option.fp_r = NULL;
		}
	}

	if (reader->option.fp_w) {
		if (fwrite(&reader->start_time_usec, sizeof(uint64_t), 2, reader->option.fp_w) != 2) {
			fprintf(stderr, "failed to write binary records: %s\n", strerror(errno));
			fclose(reader->option.fp_w);
			reader->option.fp_w = NULL;
		}
	}

	{
		struct time_buf time_buf;
		trace_reader_strftime(reader, reader->start_time_tsc, &time_buf);
		fprintf(stderr, "trace_start_time: %.*s\n", time_buf.len, time_buf.data);
		fprintf(stderr, "filter: vpcid %d ", reader->option.vpcid);
		tuple_filter_dump(&reader->option.tuple, stderr);
	}
}

static void fill_trace_cache(struct trace_reader *reader)
{
	int i;

	for (i = 0; i < 1; i++) {
		struct trace_cache *c;
		size_t nr_lost = 0;
		size_t nr_filtered = 0;
		array_for_each(c, reader->percpu) {
			trace_cache_fill(c, &reader->option);
			nr_lost += c->nr_lost;
			nr_filtered += c->nr_filtered;
		}
		reader->nr_lost = nr_lost;
		reader->nr_filtered = nr_filtered;
	}
}

static struct trace_cache *choose_trace_cache(struct trace_reader *reader)
{
	uint64_t tsc_min = 0;
	struct trace_cache *tsc_min_c = NULL;
	struct trace_cache *c;
	struct trace_record *r;

	array_for_each(c, reader->percpu) {
		if (trace_cache_empty(c))
			continue;
		r = trace_cache_at(c, c->r);
		if (!tsc_min_c || tsc_min > r->rx_tsc) {
			tsc_min_c = c;
			tsc_min = r->rx_tsc;
		}
	}

	return tsc_min_c;
}

struct trace_record *trace_read(struct trace_reader *reader)
{
	struct trace_cache *c;
	struct trace_record *r;
	static struct trace_record rbuf;

	if (reader->nr_read >= reader->option.nr_read_max)
		exit(1); // SIGINT was ignored somewhere unexpectly.

	if (reader->option.fp_r) {
		r = &rbuf;
		for (;;) {
			if (fread(r, sizeof(*r), 1, reader->option.fp_r) != 1) {
				reader->option.nr_read_max = reader->nr_read; // to avoid next read.
				(void)raise(SIGINT);
				return NULL;
			}
			if (match_record(&reader->option, r))
				break;
			reader->nr_filtered++;
		}
	} else {
		fill_trace_cache(reader);
		c = choose_trace_cache(reader);
		if (!c)
			return NULL;
		r = trace_cache_at(c, c->r++);
	}

	if (reader->option.fp_w) {
		if (fwrite(r, sizeof(*r), 1, reader->option.fp_w) != 1) {
			fprintf(stderr, "failed to write binary records: %s\n", strerror(errno));
			fclose(reader->option.fp_w);
			reader->option.fp_w = NULL;
			(void)raise(SIGINT);
		}
	}

	reader->nr_read++;

	if (reader->nr_read == reader->option.nr_read_max) {
		if (reader->option.fp_w)
			fclose(reader->option.fp_w);
		(void)raise(SIGINT);
	}

	return r;
}
